This cast-in-place concrete stair assembly features a slip-resistant surface with embedded carborundum strips positioned at the tread nosing. A radius or bevel between six and ten millimeters is provided in the horizontal dimension on all riser nosings. Risers receive a finish matching the stair tread, which is applied similarly to landings. The tread length is sized per plan, with riser heights ranging from one hundred twenty-five to one hundred eighty millimeters.

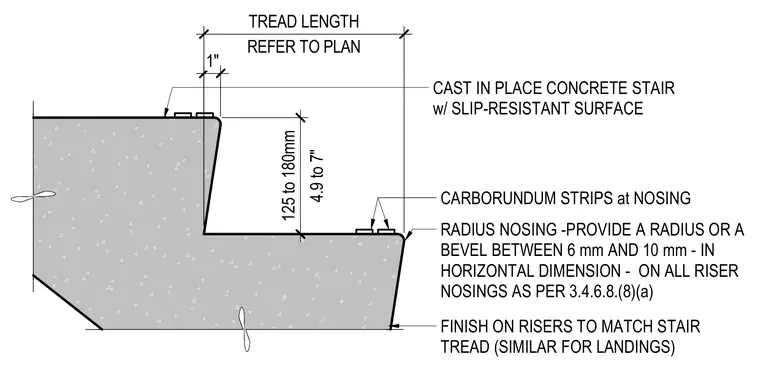

FINISH ON RISERS TO MATCH STAIR TREAD (SIMILAR FOR LANDINGS) CARBORUNDUM STRIPS at NOSING CAST IN PLACE CONCRETE STAIR w/ SLIP-RESISTANT SURFACE RADIUS NOSING -PROVIDE A RADIUS OR A BEVEL BETWEEN 6 mm AND 10 mm - IN HORIZONTAL DIMENSION - ON ALL RISER NOSINGS AS PER 3.4.6.8.(8)(a) REFER TO PLAN TREAD LENGTH 4.9 to 7" 125 to 180mm 1"
