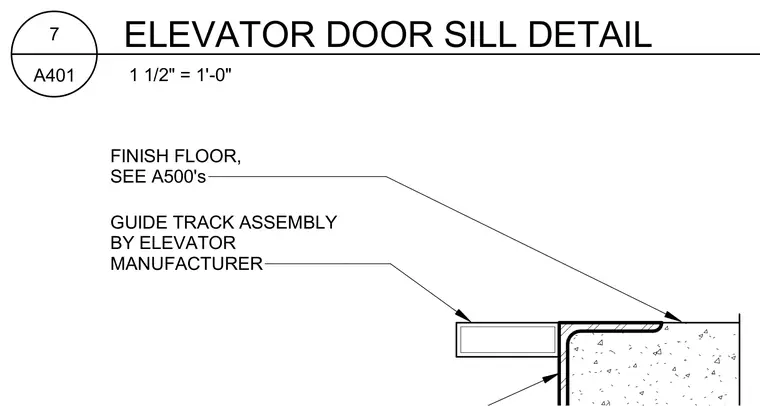

An elevator door sill assembly interfaces with the adjacent finish floor transition at the concrete slab. The guide track assembly is provided by the elevator manufacturer and aligns with the finish floor as specified on sheet A500.
GUIDE TRACK ASSEMBLY BY ELEVATOR MANUFACTURER FINISH FLOOR, SEE A500's 1 1/2" = 1'-0" A401 7 ELEVATOR DOOR SILL DETAIL
