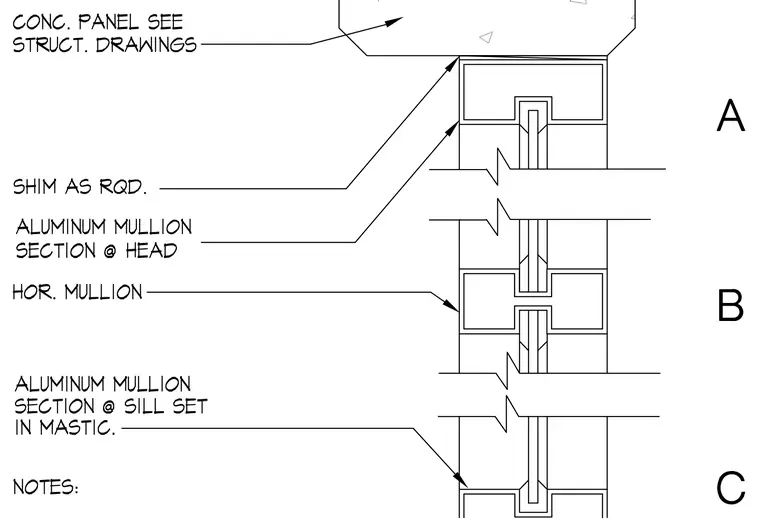

An aluminum mullion section at the head bears against a concrete panel with shims as required. The horizontal mullion interfaces with the glass infill, and the aluminum mullion section at the sill is set in mastic. Concrete panels are coordinated per structural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
