A framed surround assembly is constructed using cold-formed steel studs finished with gypsum wallboard and medium-density fiberboard panels. The assembly connects to a partition wall specified per plan and incorporates an integrated continuous bench below. Material specifications include 054000 cold-formed metal framing, 092900 gypsum board, 064023 medium-density fiberboard, and 084113 interior storefront framing elements.

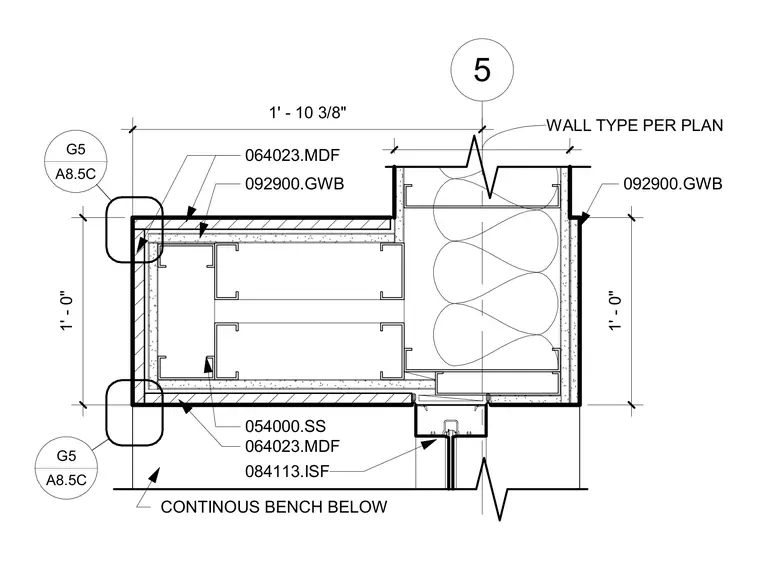

5 1' - 10 3/8" 1' - 0" 1' - 0" 064023.MDF 092900.GWB 064023.MDF 064023.MDF 054000.SS 092900.GWB 084113.ISF CONTINOUS BENCH BELOW ________________________________________________ A8.5C G5 ________________________________________________ A8.5C G5 WALL TYPE PER PLAN
