Architectural · A-ASNC2

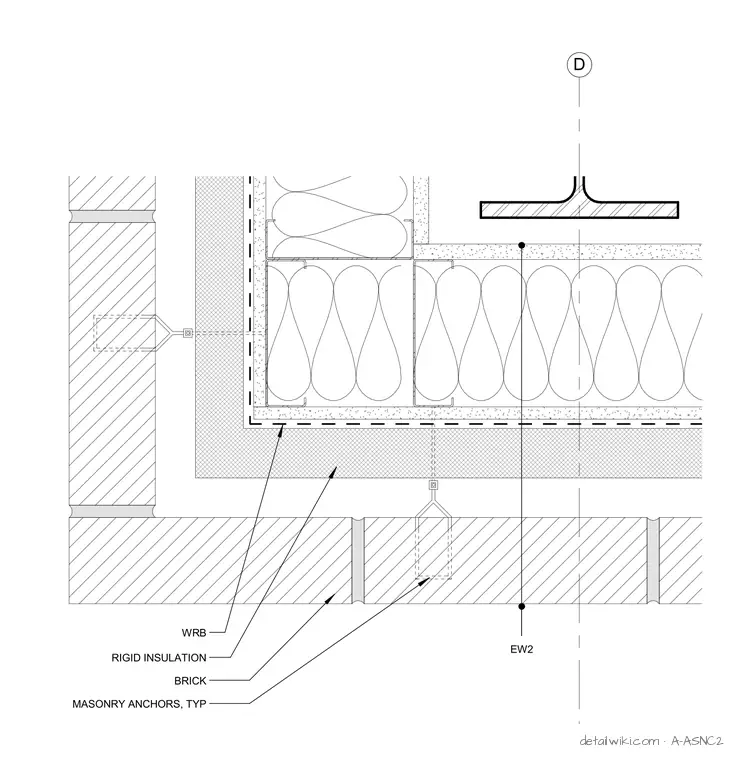

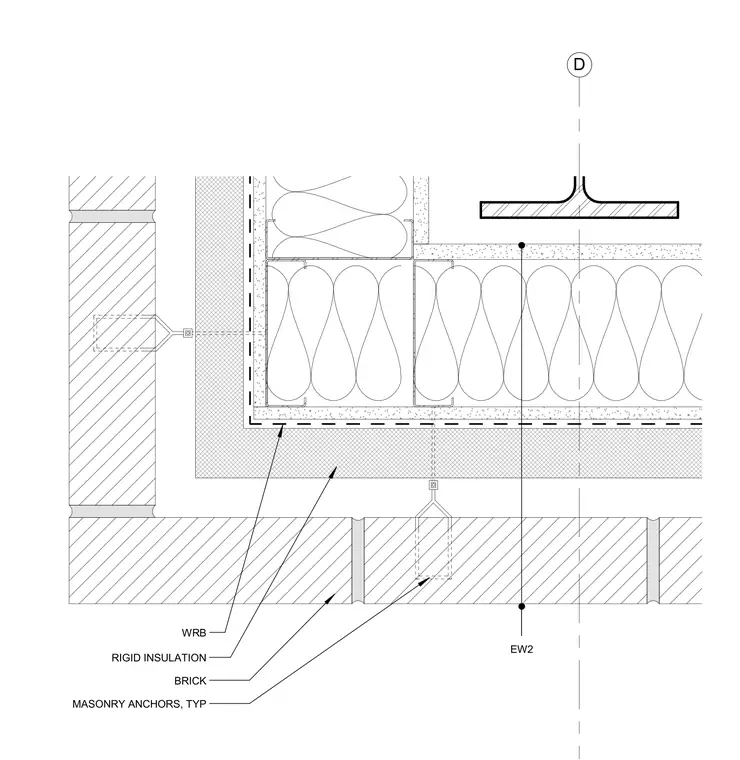

Typical Outside Corner Brick

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.22
Discipline: Architectural

Materials

Brick Masonry / CMU

Elements

Anchors / Embeds Facades / Cladding Insulation Walls Waterproofing / Flashing

Text on the drawing

D BRICK MASONRY ANCHORS, TYP WRB RIGID INSULATION EW2
