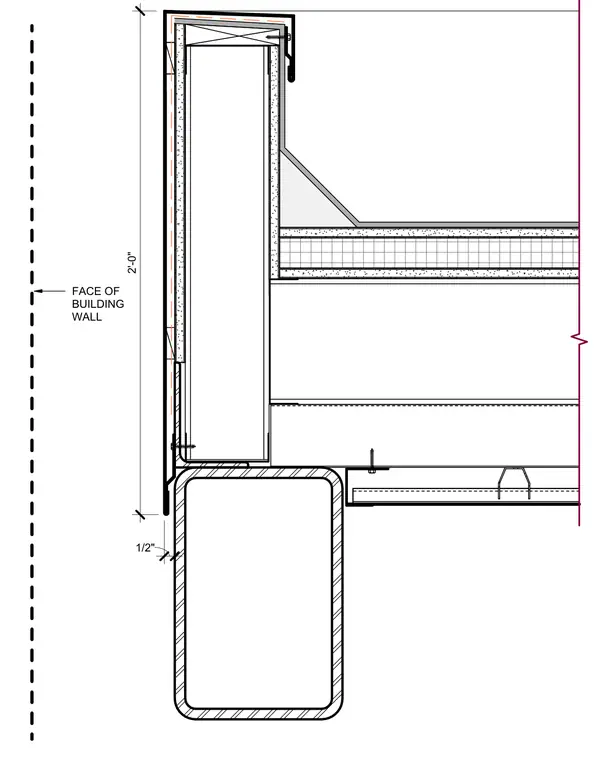

A metal canopy fascia transitions into the face of the building wall above a structural steel member. The assembly is dimensioned with a two-foot vertical offset from the building wall reference line down to the structural support. Sheet metal flashing caps the fascia and interfaces with the exterior wall construction.
