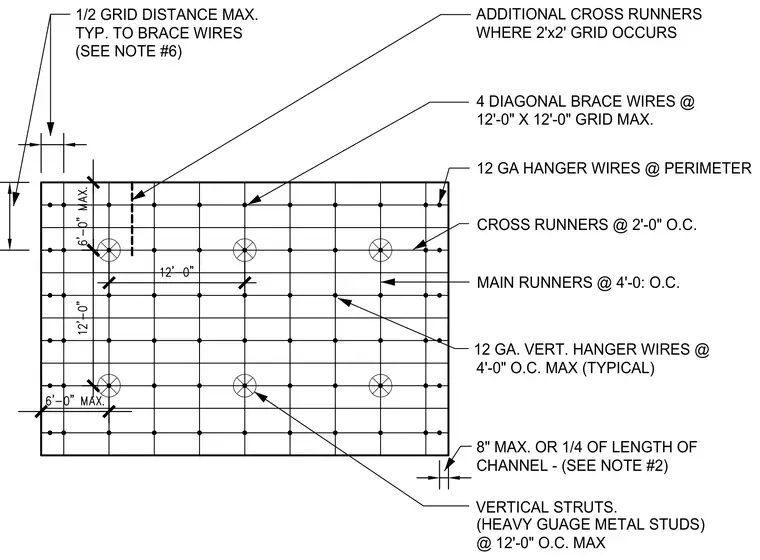

Suspended acoustical ceiling grid layout featuring main runners at 4 feet on center and cross runners at 2 feet on center with additional cross runners for 2 foot by 2 foot grids. Twelve-gauge vertical hanger wires are spaced at a maximum of 4 feet on center, with perimeter hanger wires spaced up to 8 inches or one-fourth the length of the channel. Four diagonal brace wires are installed at a maximum 12-foot by 12-foot grid spacing with a maximum half-grid distance to brace wires. Vertical struts consisting of heavy gauge metal studs are placed at a maximum of 12 feet on center.
TYP. TO BRACE WIRES (SEE NOTE #6) 1/2 GRID DISTANCE MAX. (HEAVY GUAGE METAL STUDS) @ 12'-0" O.C. MAX 4'-0" O.C. MAX (TYPICAL) CHANNEL - (SEE NOTE #2) VERTICAL STRUTS. 12 GA. VERT. HANGER WIRES @ 8" MAX. OR 1/4 OF LENGTH OF 12'-0" X 12'-0" GRID MAX. MAIN RUNNERS @ 4'-0: O.C. 12 GA HANGER WIRES @ PERIMETER 4 DIAGONAL BRACE WIRES @ CROSS RUNNERS @ 2'-0" O.C. ADDITIONAL CROSS RUNNERS WHERE 2'x2' GRID OCCURS
