This expansion joint assembly bridges between structural steel columns and concrete slabs over metal decks. The joint incorporates an expansion joint cover plate system flanked by two three-sixteenths by two by twenty-inch metal plates with ground edges welded to one steel column only and finished with paint PT-9, terminating flush with the column face. A three-sixteenths by five by twenty-inch metal kick plate with ground edges is welded to one steel column and finished with paint PT-9. The supporting steel columns and steel beams are sized per structural drawings, with the joint width coordinated accordingly.

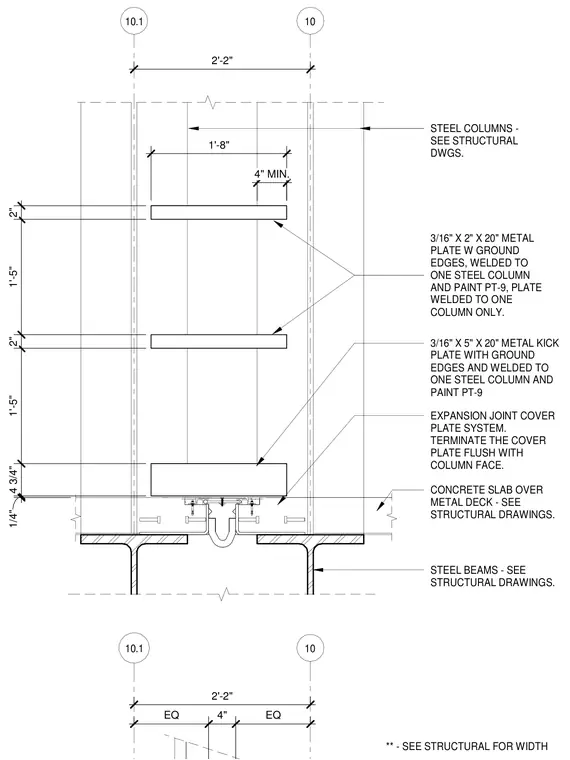

STEEL COLUMNS - SEE STRUCTURAL DWGS. 3/16" X 2" X 20" METAL PLATE W GROUND EDGES, WELDED TO ONE STEEL COLUMN AND PAINT PT-9, PLATE WELDED TO ONE COLUMN ONLY. 3/16" X 5" X 20" METAL KICK PLATE WITH GROUND EDGES AND WELDED TO ONE STEEL COLUMN AND PAINT PT-9 EXPANSION JOINT COVER PLATE SYSTEM. TERMINATE THE COVER PLATE FLUSH WITH COLUMN FACE. CONCRETE SLAB OVER METAL DECK - SEE STRUCTURAL DRAWINGS. STEEL BEAMS - SEE STRUCTURAL DRAWINGS. ** - SEE STRUCTURAL FOR WIDTH 1'-8" 4" MIN. 1/4" 4 3/4" 1'-5" 2" 1'-5" 2" 2'-2" 10.1 10 10.1 10 2'-2" EQ 4" EQ
