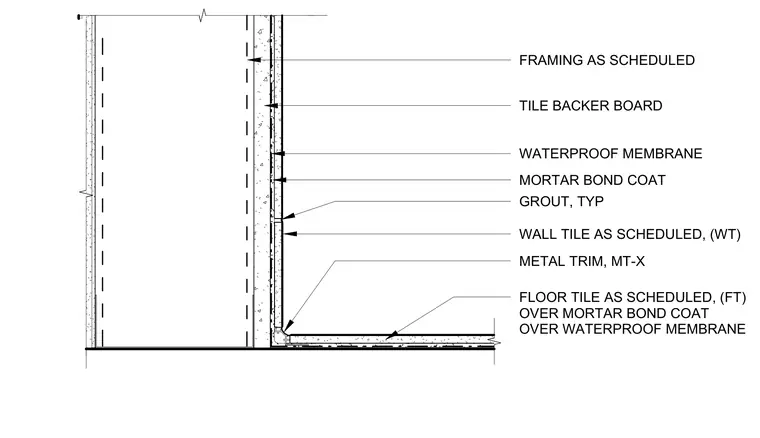

Wall tile is applied over a mortar bond coat and waterproof membrane on tile backer board secured to framing as scheduled. Floor tile sits over a mortar bond coat and waterproof membrane. A metal trim piece finishes the junction between the wall tile and floor tile, with typical grout joints throughout.
MORTAR BOND COAT TILE BACKER BOARD METAL TRIM, MT-X FRAMING AS SCHEDULED FLOOR TILE AS SCHEDULED, (FT) OVER MORTAR BOND COAT OVER WATERPROOF MEMBRANE GROUT, TYP WATERPROOF MEMBRANE WALL TILE AS SCHEDULED, (WT)
