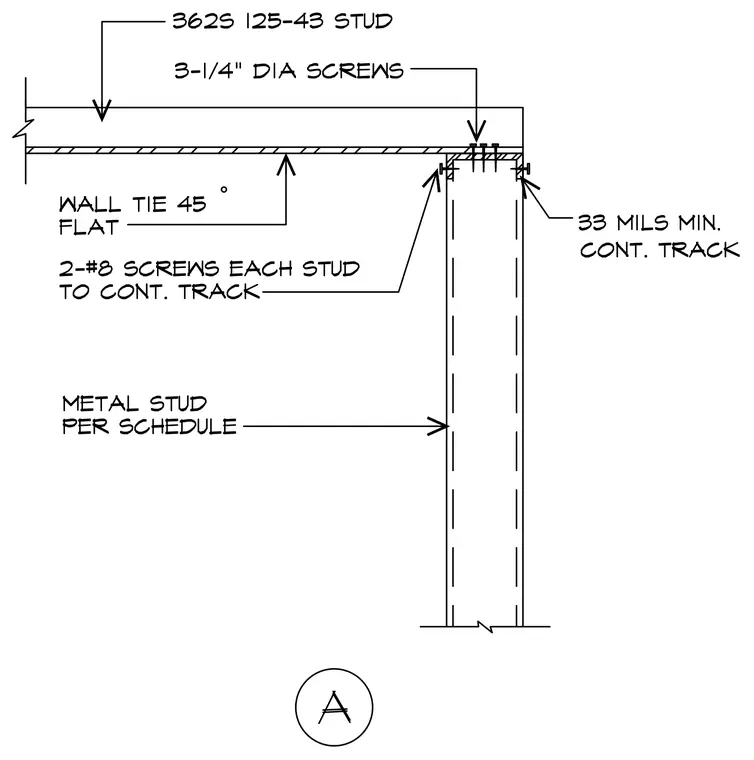

A 362S125-43 cold-formed steel stud connects to a continuous track using two number eight screws at each stud. A flat wall tie is positioned across the assembly. The top track is secured with three quarter-inch diameter screws. A 33 mils minimum continuous track frames the boundary of the wall per schedule.
