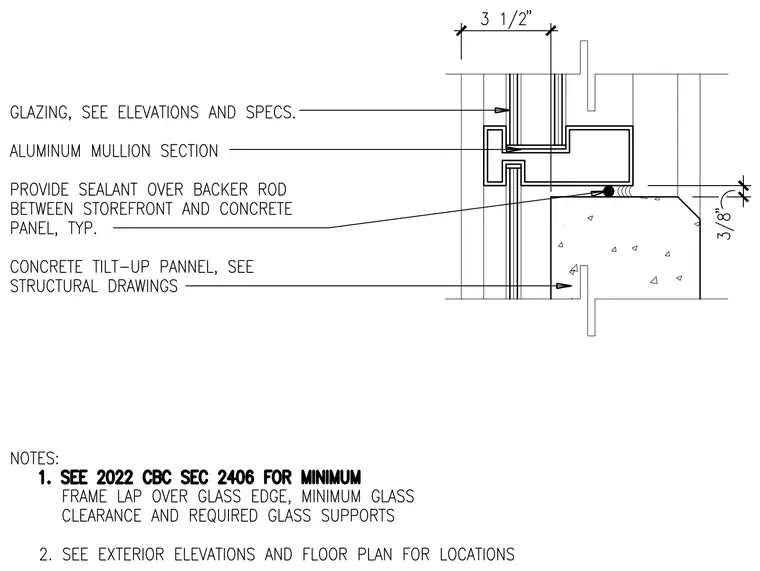

An aluminum mullion section frames the glazing assembly bearing above a concrete tilt-up wall panel. A three-eighths-inch joint between the storefront frame and the concrete panel is sealed with elastomeric sealant over a backer rod. The glazing infill is specified per elevations and architectural specifications. Dimensions indicate a three-and-a-half-inch frame alignment offset. General notes reference CBC Section 2406 for minimum frame lap over glass edge, minimum glass clearance, and required glass supports.
