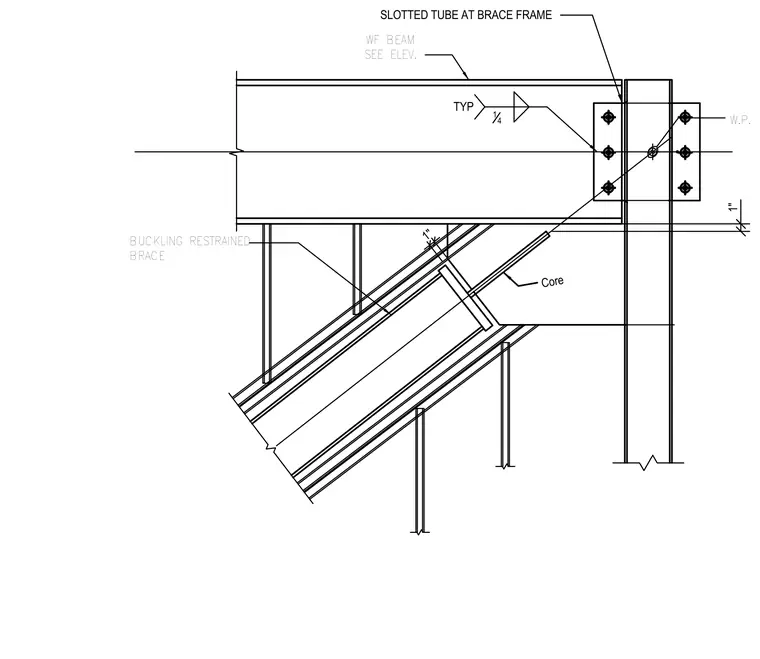

A buckling-restrained brace with a core connects to a wide-flange beam and column frame at a designated work point. A slotted tube at the brace frame interfaces with the gusset connection, secured with a one-inch clearance detail. Fillet welds sized at one-quarter inch are applied typically along the gusset and beam web connections. The wide-flange beam is sized per elevation with continuous stiffener plates framing the connection zone.
1" 14 Core WF BEAM SEE ELEV. W.P. 1" BUCKLING RESTRAINED BRACE TYP SLOTTED TUBE AT BRACE FRAME
