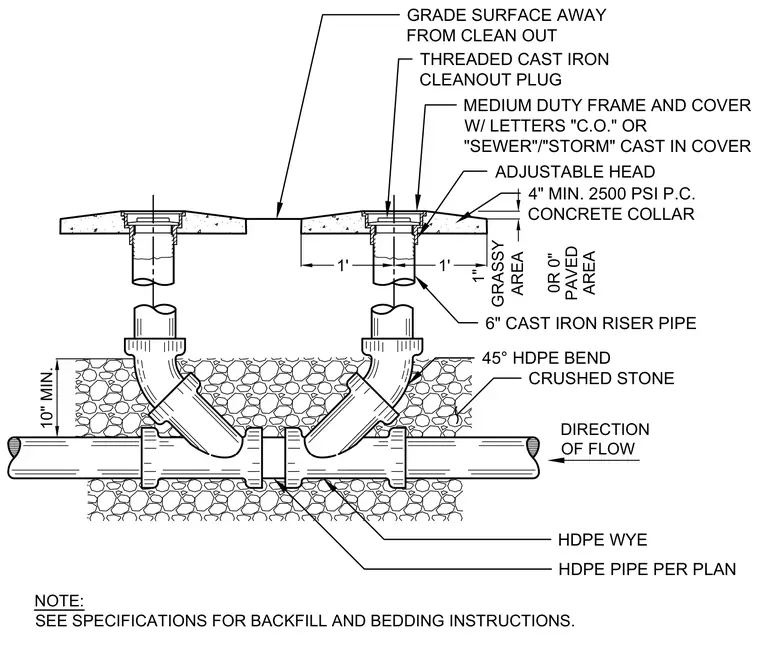

An underground sanitary sewer cleanout connects to a main high-density polyethylene pipe via a high-density polyethylene wye and a forty-five-degree high-density polyethylene bend embedded in a crushed stone bedding. A six-inch cast iron riser pipe extends upward to an adjustable head topped with a threaded cast iron cleanout plug and a medium-duty frame and cover with cast-in lettering. A four-inch minimum twenty-five-hundred psi plain cement concrete collar surrounds the adjustable head, set flush with a zero-inch paved area or one-inch grassy area while grading surface water away from the cleanout. Backfill and bedding installation follows project specifications.
1' 1' 10" MIN. NOTE: SEE SPECIFICATIONS FOR BACKFILL AND BEDDING INSTRUCTIONS. 1" GRASSY AREA 0R 0" PAVED AREA DIRECTION OF FLOW GRADE SURFACE AWAY FROM CLEAN OUT THREADED CAST IRON CLEANOUT PLUG MEDIUM DUTY FRAME AND COVER W/ LETTERS "C.O." OR "SEWER"/"STORM" CAST IN COVER ADJUSTABLE HEAD 4" MIN. 2500 PSI P.C. CONCRETE COLLAR 6" CAST IRON RISER PIPE 45° HDPE BEND CRUSHED STONE HDPE WYE HDPE PIPE PER PLAN
