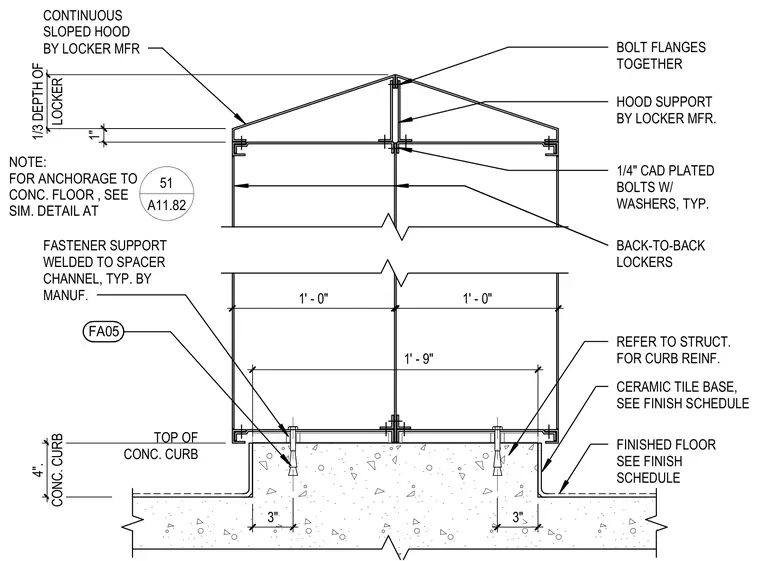

Back-to-back metal lockers mount onto a four-inch concrete curb with floor anchorage coordinated with structural drawings. Fastener supports are welded to spacer channels by the manufacturer, and quarter-inch cadmium-plated bolts with washers secure the locker bodies together. A continuous sloped hood tops the assembly at one-third the depth of the locker. A ceramic tile base abuts the curb at the finished floor line.
1' - 0" 1' - 0" 1' - 9" LOCKER 1/3 DEPTH OF CONC. CURB 4". 1" CONTINUOUS SLOPED HOOD BY LOCKER MFR FASTENER SUPPORT WELDED TO SPACER CHANNEL, TYP. BY MANUF. TOP OF CONC. CURB BOLT FLANGES TOGETHER HOOD SUPPORT BY LOCKER MFR. 1/4" CAD PLATED BOLTS W/ WASHERS, TYP. BACK-TO-BACK LOCKERS REFER TO STRUCT. FOR CURB REINF. CERAMIC TILE BASE, SEE FINISH SCHEDULE FINISHED FLOOR SEE FINISH SCHEDULE 3" 3" NOTE: FOR ANCHORAGE TO CONC. FLOOR , SEE SIM. DETAIL AT 51 A11.82 FA05
