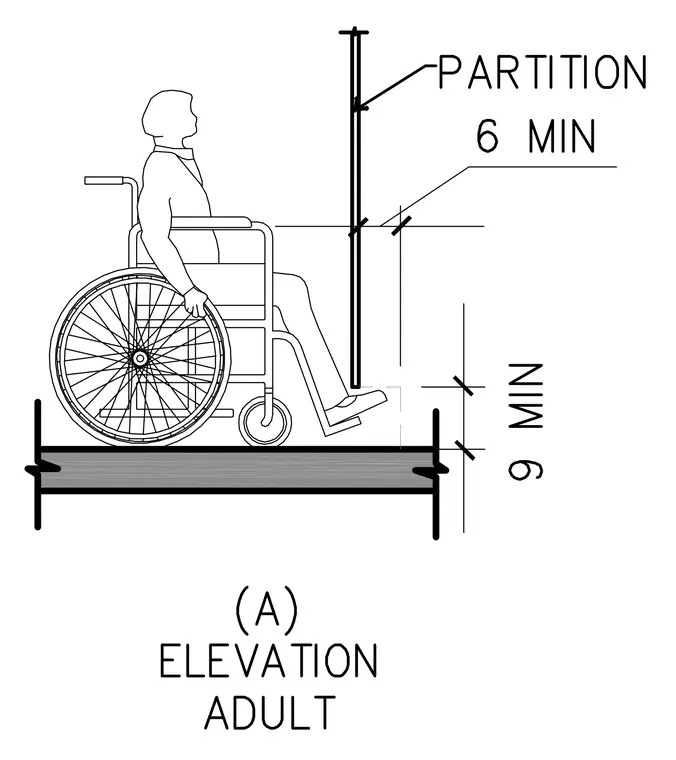

An adult wheelchair user is shown positioned relative to a partition wall with minimum height and clearance dimensions indicated. A nine-inch minimum dimension is maintained from the finished floor to the underside of the partition clearance zone. A six-inch minimum dimension references the height between the wheelchair armrest level and the partition alignment.
