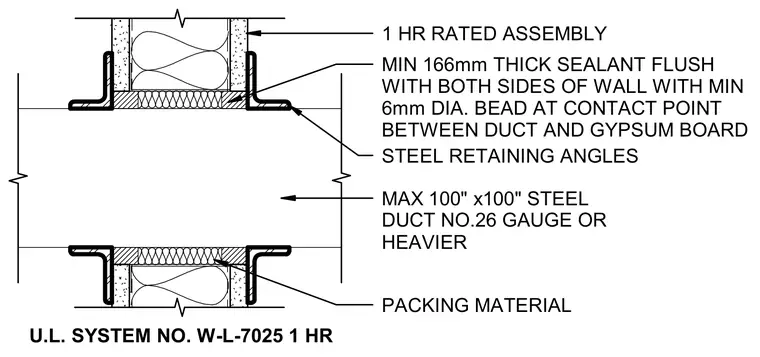

A steel duct penetrates a one-hour fire-rated wall assembly measuring up to 100 inches by 100 inches with a minimum number 26 gauge or heavier duct. Packing material fills the penetration annular space alongside a minimum 166-millimeter-thick sealant flush with both sides of the wall. Steel retaining angles anchor against the wall surfaces with a minimum six-millimeter-diameter bead of sealant at the contact point between the duct and gypsum board, conforming to Underwriters Laboratories system number W-L-7025.
1 HR RATED ASSEMBLY MAX 100" x100" STEEL DUCT NO.26 GAUGE OR HEAVIER PACKING MATERIAL STEEL RETAINING ANGLES U.L. SYSTEM NO. W-L-7025 1 HR MIN 166mm THICK SEALANT FLUSH WITH BOTH SIDES OF WALL WITH MIN 6mm DIA. BEAD AT CONTACT POINT BETWEEN DUCT AND GYPSUM BOARD
