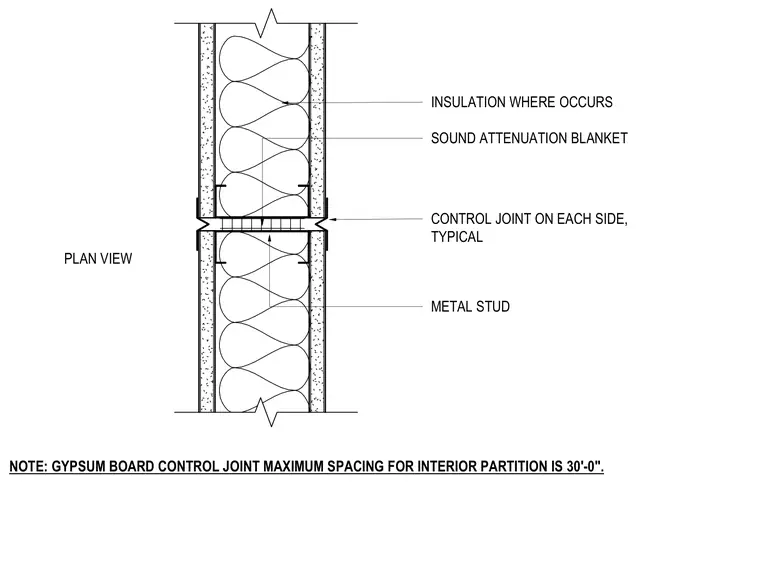

An interior partition control joint is detailed in plan view with dedicated control joint trim applied to both sides of the gypsum board finish. Metal studs frame the partition assembly, which is filled with sound attenuation blanket insulation where specified. A general note mandates a maximum spacing of thirty feet for gypsum board control joints in interior partitions.
INSULATION WHERE OCCURS SOUND ATTENUATION BLANKET METAL STUD PLAN VIEW CONTROL JOINT ON EACH SIDE, TYPICAL NOTE: GYPSUM BOARD CONTROL JOINT MAXIMUM SPACING FOR INTERIOR PARTITION IS 30'-0".
