Metal Stair Railing and Guardrail Assembly

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Walls Stairs Railings / Guards Floors / Slabs Foundations / Footings Anchors / Embeds

Connections

Welded Connection

About this detail

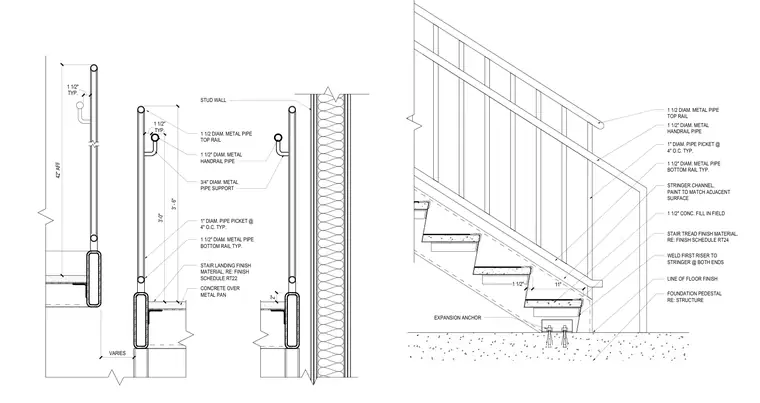

This metal stair railing and guardrail assembly features a 1 1/2-inch diameter metal pipe top rail, a 1 1/2-inch diameter metal handrail pipe on 3/4-inch diameter pipe supports, and a 1 1/2-inch diameter metal bottom rail. Vertical 1-inch diameter pipe pickets are spaced at 4 inches on center. The guardrail system stands at 3 feet 6 inches to 42 inches above the finished floor, anchored adjacent to a stud wall and anchored to concrete-filled metal pan stairs with stringer channels welded to the first riser at both ends. The stairs bear on a foundation pedestal secured with expansion anchors, featuring a 1 1/2-inch concrete fill in the field and specified stair tread and landing finish materials.
