A wall-mounted mirror installation meets a tile wainscot with Type 1 backing supported by wood blocking to align with the tile depth below. The mirror is secured using manufacturer-provided hanger brackets, with exposed edges painted to match the wall finish per the finish schedule.

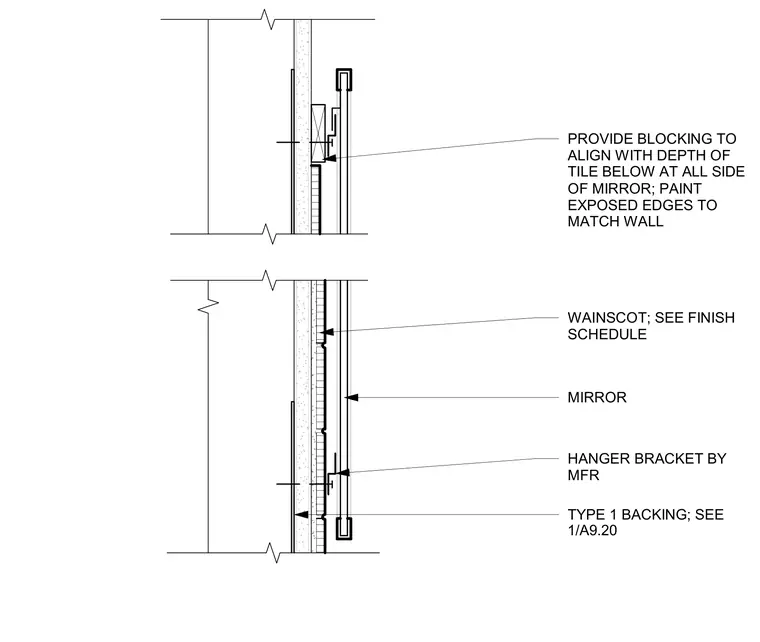

PROVIDE BLOCKING TO ALIGN WITH DEPTH OF TILE BELOW AT ALL SIDE OF MIRROR; PAINT EXPOSED EDGES TO MATCH WALL MIRROR TYPE 1 BACKING; SEE WAINSCOT; SEE FINISH SCHEDULE HANGER BRACKET BY MFR 1/A9.20
