A continuous steel plate is welded to the top cap adjacent to the concrete slab edge below. A base steel plate connects to a stanchion plate with a one-half inch typical clearance. The assembly is dimensioned with three-quarter inch and one-half inch offsets at the corner condition.

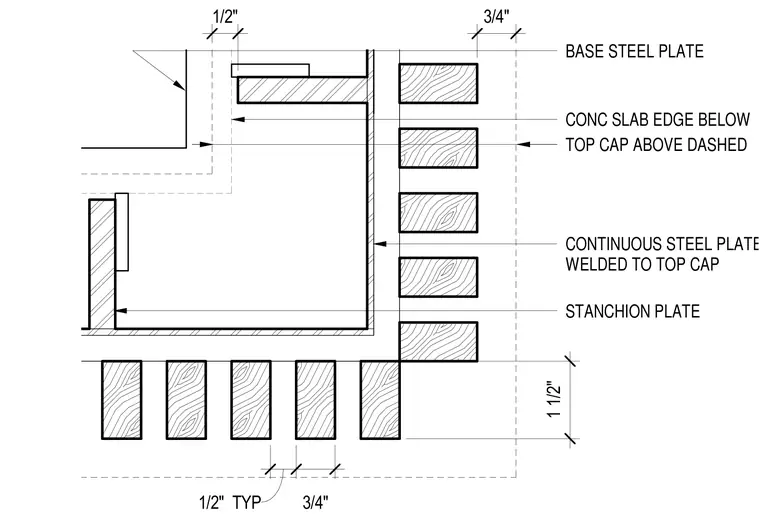

CONC SLAB EDGE BELOW TOP CAP ABOVE DASHED 1/2" TYP 3/4" CONTINUOUS STEEL PLATE WELDED TO TOP CAP 3/4" 1/2" STANCHION PLATE BASE STEEL PLATE 1 1/2"
