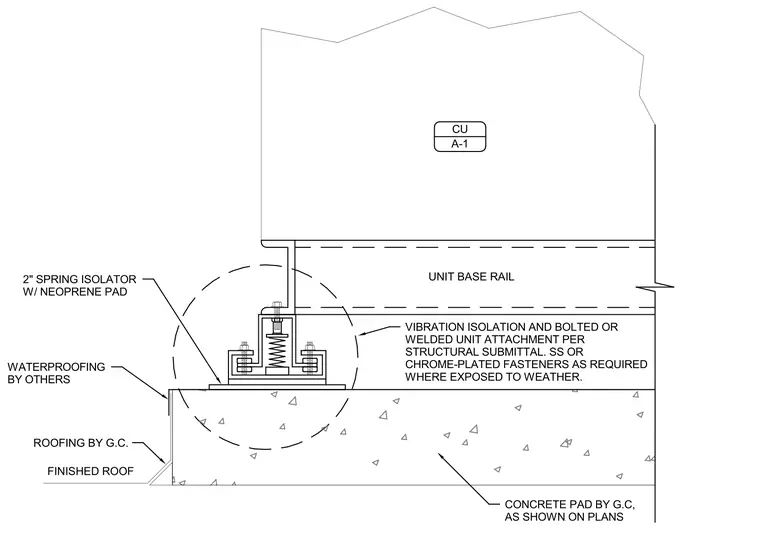

The variable refrigerant flow condensing unit base rail bears on a two-inch spring isolator with a neoprene pad supported by a concrete pad provided by the general contractor. Vibration isolation and bolted or welded unit attachment proceed per the structural submittal using stainless steel or chrome-plated fasteners as required where exposed to weather. Roofing and waterproofing are provided by others at the concrete pad perimeter above the finished roof.
WATERPROOFING BY OTHERS CONCRETE PAD BY G.C, AS SHOWN ON PLANS 2" SPRING ISOLATOR W/ NEOPRENE PAD ROOFING BY G.C. VIBRATION ISOLATION AND BOLTED OR WELDED UNIT ATTACHMENT PER STRUCTURAL SUBMITTAL. SS OR CHROME-PLATED FASTENERS AS REQUIRED WHERE EXPOSED TO WEATHER. CU A-1 UNIT BASE RAIL FINISHED ROOF
