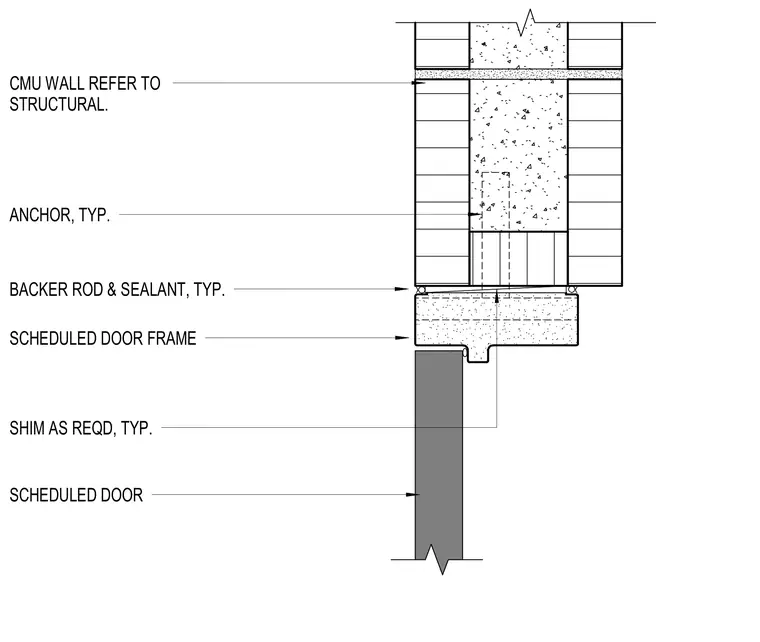

A scheduled door frame is set within a concrete masonry unit wall at the head condition. The frame is anchored into the grouted CMU wall with typical anchors and aligned using shims as required. A backer rod and sealant joint is provided at the interface between the door frame and the masonry head.
CMU WALL REFER TO STRUCTURAL. ANCHOR, TYP. SCHEDULED DOOR SCHEDULED DOOR FRAME SHIM AS REQD, TYP. BACKER ROD & SEALANT, TYP.
