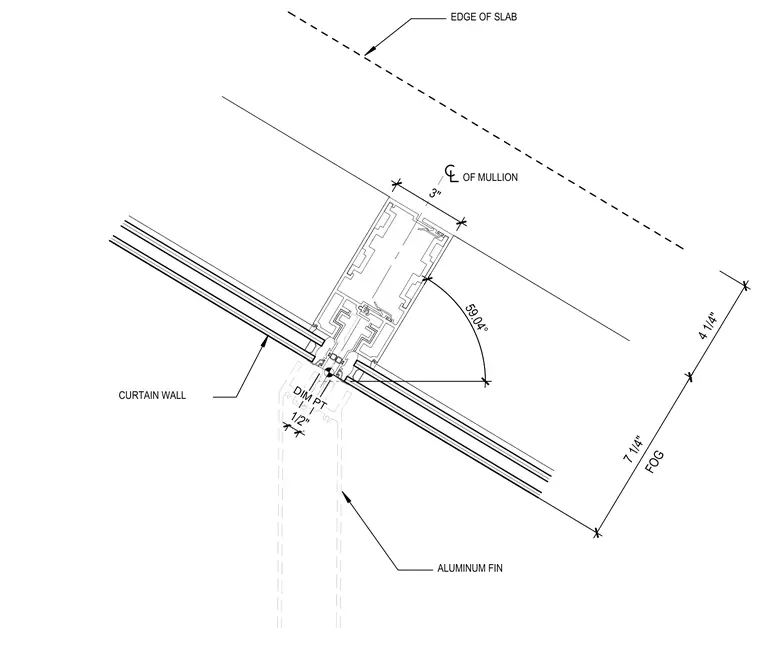

This plan detail shows an angled curtain wall mullion with a 59.04 degree geometry relative to the glass line and building edge. The assembly features an aluminum mullion centered at a dimension point with a 3 inch offset to the edge of the slab. An exterior aluminum fin projects from the mullion, measuring 7 1/4 inches overall with a 1/2 inch dimension to the reference point. Insulated glazing units insert into the curtain wall framing system.
F O G 7 1 / 4 " 1 / 2 " OF MULLION 4 1 / 4 " DIM PT CURTAIN WALL 5 9 . 0 4 ° EDGE OF SLAB ALUMINUM FIN 3 "
