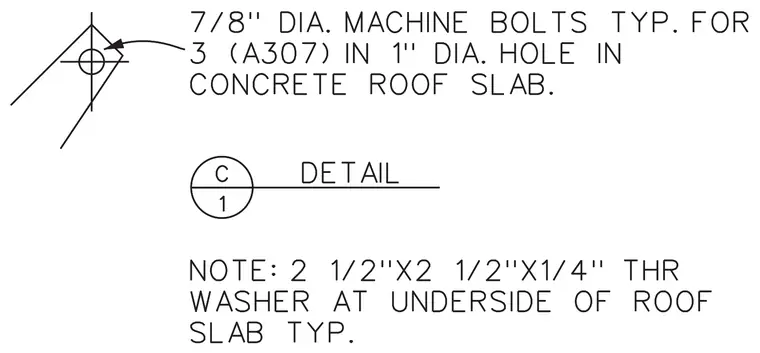

Seven-eighths inch diameter machine bolts of type A307 typical are installed in one-inch diameter holes within the concrete roof slab. A two-and-one-half by two-and-one-half by one-quarter inch threaded washer is positioned at the underside of the roof slab typical.
