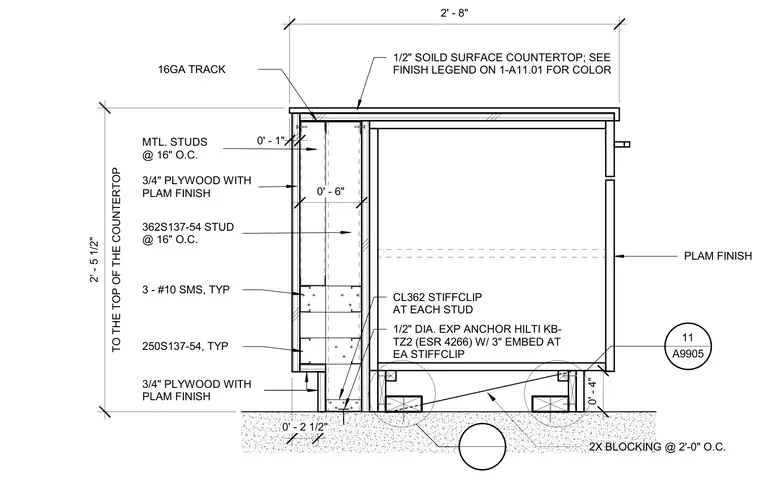

This wall section details a service counter low wall framed with 362S137-54 metal studs spaced at sixteen inches on center with a 16-gauge track. The exterior face is clad with three-quarter-inch plywood featuring a plastic laminate finish, while the countertop is constructed from a half-inch solid surface material. The framing is anchored at each stud using a CL362 stiffclip secured with a half-inch diameter Hilti KB-TZ2 expansion anchor having a three-inch embedment. Interior framing elements include 250S137-54 tracks connected with three typical number-ten sheet metal screws and two-by blocking spaced at two feet on center.
0' - 6" 2' - 8" TO THE TOP OF THE COUNTERTOP 2' - 5 1/2" 1/2" SOILD SURFACE COUNTERTOP; SEE FINISH LEGEND ON 1-A11.01 FOR COLOR PLAM FINISH 0' - 4" 3/4" PLYWOOD WITH PLAM FINISH 362S137-54 STUD @ 16" O.C. 3/4" PLYWOOD WITH PLAM FINISH 0' - 1" CL362 STIFFCLIP AT EACH STUD 1/2" DIA. EXP ANCHOR HILTI KB- TZ2 (ESR 4266) W/ 3" EMBED AT EA STIFFCLIP MTL. STUDS @ 16" O.C. 16GA TRACK 3 - #10 SMS, TYP 250S137-54, TYP 0' - 2 1/2" 2X BLOCKING @ 2'-0" O.C. 11 A9905
