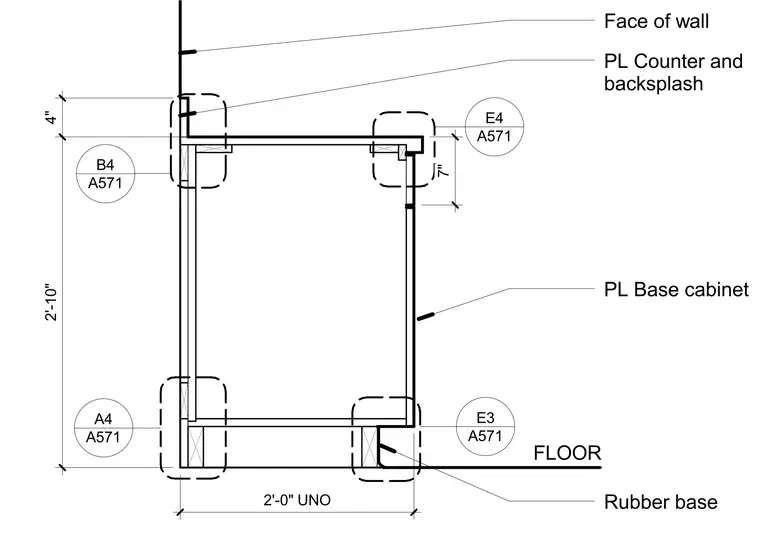

This base cabinet assembly features a plastic laminate counter and backsplash meeting the face of the wall. The cabinet has a total height of two feet ten inches from the floor to the top of the backsplash, with a four-inch backsplash height and a seven-inch upper reveal. The unit is two feet deep, unless noted otherwise, and rests on a floor finished with a rubber base.
FLOOR A571 B4 A571 E4 A571 A4 A571 E3 2'-0" UNO 4" 2'-10" Face of wall PL Counter and backsplash PL Base cabinet Rubber base 7"
