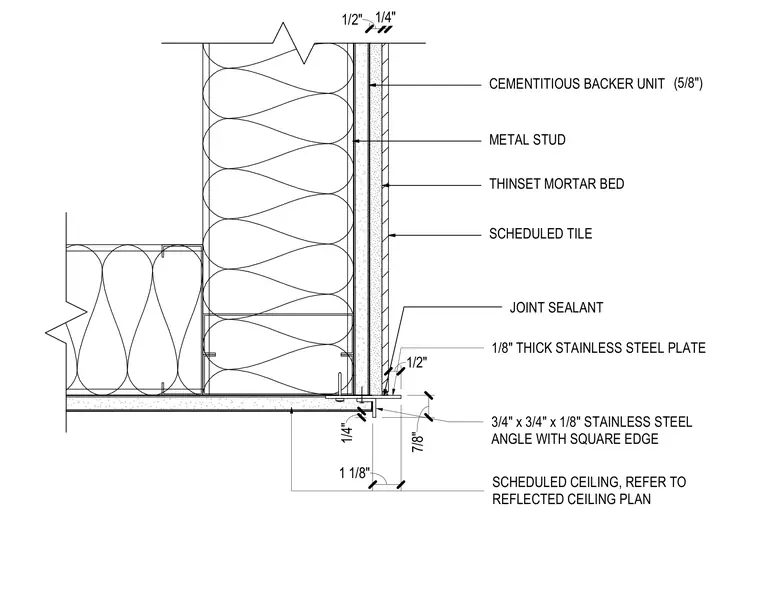

A metal stud wall supports a five-eighths-inch cementitious backer unit, which receives scheduled tile set in a thinset mortar bed. The tile edge terminates at a three-quarter-inch by three-quarter-inch by one-eighth-inch stainless steel angle with a square edge and a one-eighth-inch thick stainless steel plate. A joint sealant fills the gap between the assembly and the scheduled ceiling, which is coordinated per the reflected ceiling plan.
THINSET MORTAR BED SCHEDULED TILE METAL STUD SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN CEMENTITIOUS BACKER UNIT 1/2" 1/4" 3/4" x 3/4" x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/8" THICK STAINLESS STEEL PLATE (5/8") 1/4" 1/2" 7/8" 1 1/8" JOINT SEALANT
