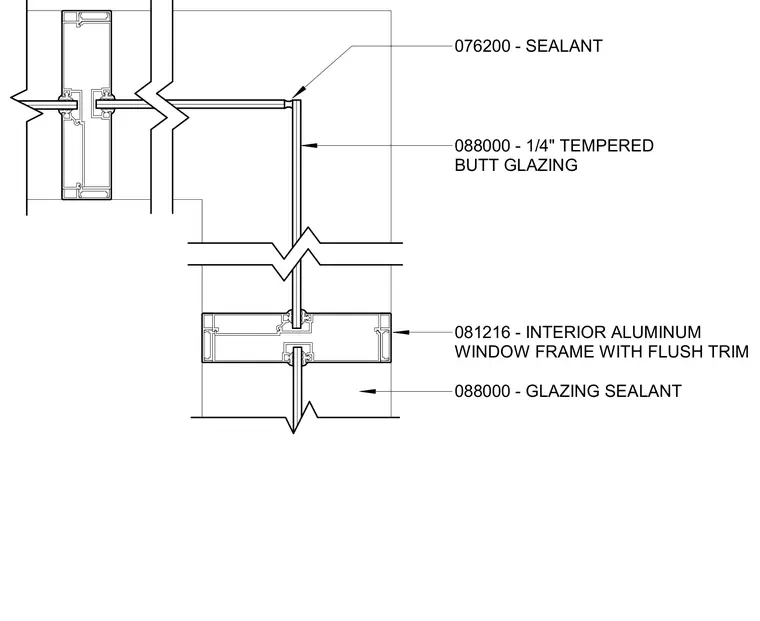

An interior aluminum window frame with flush trim forms a corner assembly featuring one-quarter-inch tempered butt glazing. Joints are sealed with glazing sealant and standard sealant at the corner intersection.
081216 - INTERIOR ALUMINUM WINDOW FRAME WITH FLUSH TRIM 088000 - 1/4" TEMPERED BUTT GLAZING 076200 - SEALANT 088000 - GLAZING SEALANT
