An audiovisual projector ceiling mounting assembly suspends from the structure using P1000T strut channels. Two perpendicular strut channel runs measuring 3 feet 6 inches interface with the structure and position the projector relative to the center line of the projection screen. P1047 U-brackets, P1010 spring channel nuts, and one-half-inch hex head cap screws secure the strut channel members together, with hardware torqued to specification. Adjacent electrical provisions include separate AC backboxes and AV VPA backboxes with connecting conduit runs.

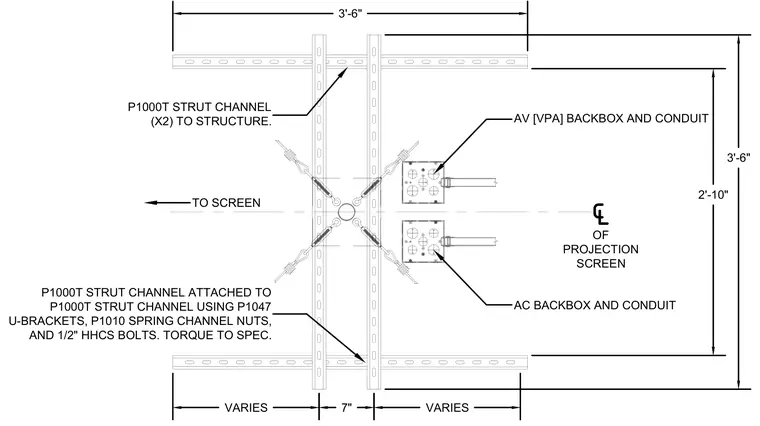

3'-6" P1000T STRUT CHANNEL (X2) TO STRUCTURE. 7" VARIES TO SCREEN VARIES 3'-6" ℄ OF PROJECTION SCREEN 2'-10" AV [VPA] BACKBOX AND CONDUIT AC BACKBOX AND CONDUIT P1000T STRUT CHANNEL ATTACHED TO P1000T STRUT CHANNEL USING P1047 U-BRACKETS, P1010 SPRING CHANNEL NUTS, AND 1/2" HHCS BOLTS. TORQUE TO SPEC.
