Interior partition framing consists of 3-5/8 inch cold-formed metal studs spaced per structural drawings with sound attenuation batt insulation installed in the stud cavity. Each side of the partition is finished with a 5/8 inch layer of gypsum wall board. Wall finishes are applied per the interior elevations and finish schedule.

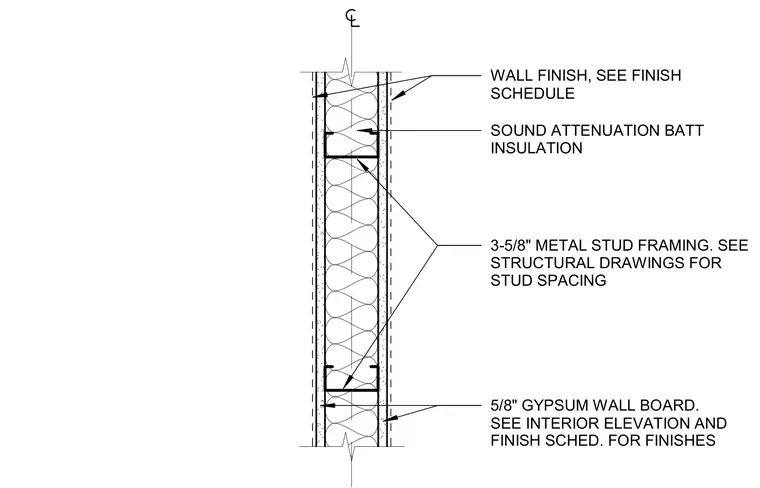

3-5/8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
