Manufactured wall cabinets are mounted to the wall framing using typical wood blocking as required. The cabinet interior includes two-inch adjustable shelves finished with hardwood edges. Cabinet pulls are installed at the bottom edge. Light rails are provided by the casework manufacturer at the underside of the cabinet.

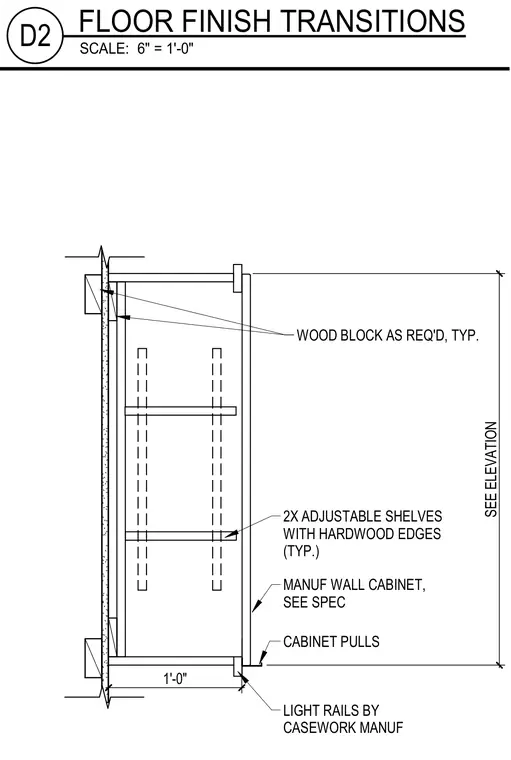

WOOD BLOCK AS REQ'D, TYP. 2X ADJUSTABLE SHELVES WITH HARDWOOD EDGES (TYP.) LIGHT RAILS BY CASEWORK MANUF MANUF WALL CABINET, SEE SPEC CABINET PULLS 1'-0" SEE ELEVATION SCALE: 6" = 1'-0" D2 FLOOR FINISH TRANSITIONS
