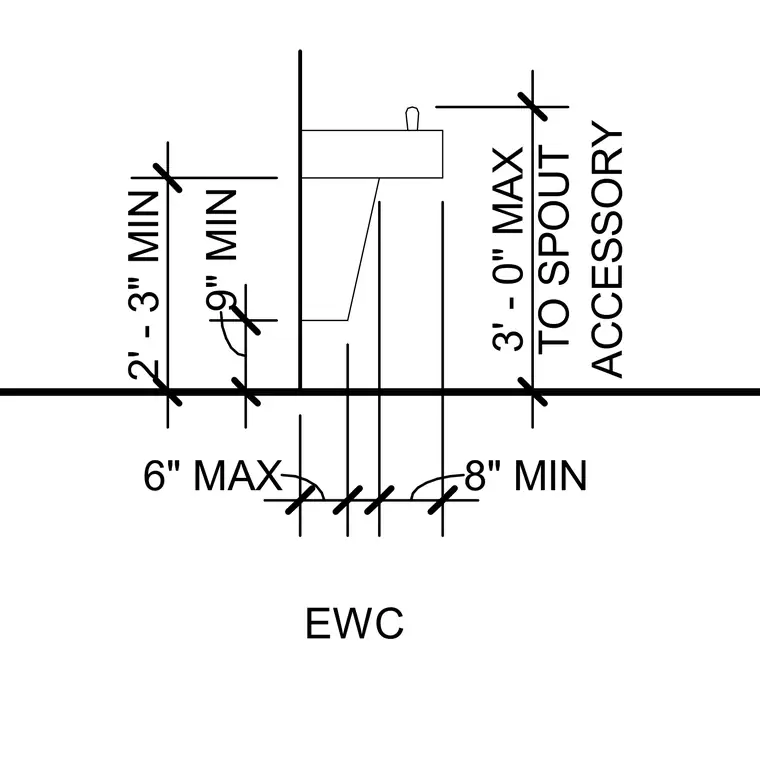

An electric water cooler is mounted to the wall with specific dimensional clearances governing its installation. The finished floor to the bottom of the unit requires a nine inch minimum clearance, while an alternate vertical dimension requires a two feet three inches minimum. Horizontal clearances from the front edge specify a six inches maximum and eight inches minimum. The spout height is restricted to a maximum of three feet zero inches above the finished floor.
