Architectural · A-AN5AD

Mechanical Concrete Pad

Materials

Concrete Reinforced Concrete Metal (misc.)

Elements

Decks Waterproofing / Flashing Reinforcing

About this detail

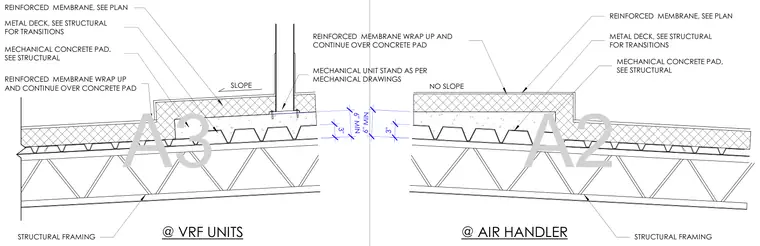

Mechanical concrete pads sit atop structural metal decks and structural framing to support rooftop equipment including VRF units and air handlers. A reinforced waterproofing membrane wraps up the sides and continues over the concrete pad with a minimum six-inch vertical leg, transitioning as specified on structural plans. The pad assembly at the VRF unit includes a three-inch thickness over the deck with a slope and a mechanical unit stand anchored to the pad. The pad assembly at the air handler maintains a flat profile with no slope over the three-inch concrete topping.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
