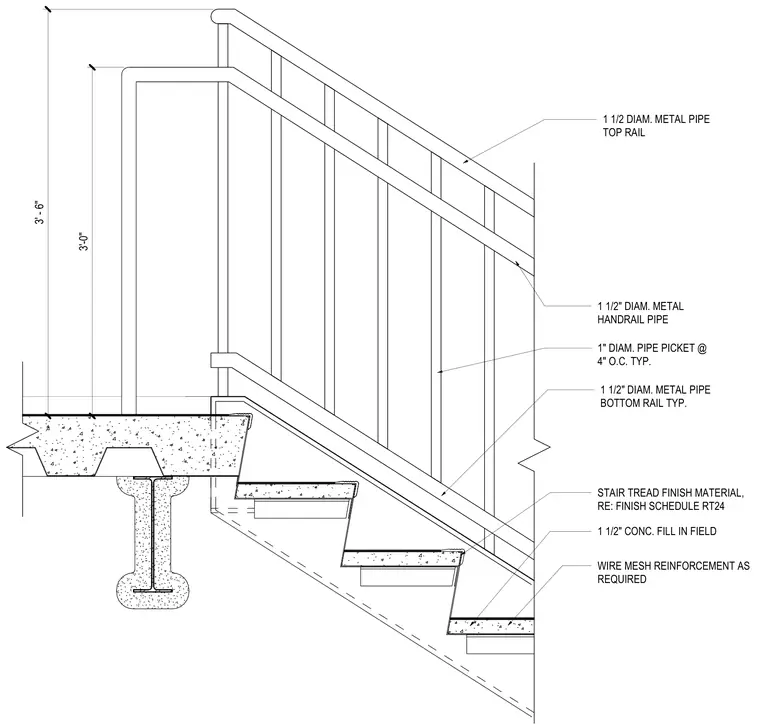

Metal stair pans receive a 1-1/2-inch concrete fill reinforced with wire mesh as required, supported by a structural steel framing member. Stair treads are finished with material specified in the finish schedule RT24. The guardrail and handrail assembly consists of a 1-1/2-inch diameter metal pipe top rail, a 1-1/2-inch diameter metal handrail pipe, and a 1-1/2-inch diameter metal bottom rail. Vertical 1-inch diameter pipe pickets are spaced at 4 inches on center typically.
1 1/2" CONC. FILL IN FIELD WIRE MESH REINFORCEMENT AS REQUIRED 3' - 6" 1 1/2 DIAM. METAL PIPE TOP RAIL 1 1/2" DIAM. METAL PIPE BOTTOM RAIL TYP. 1" DIAM. PIPE PICKET @ 4" O.C. TYP. 1 1/2" DIAM. METAL HANDRAIL PIPE 3'-0" STAIR TREAD FINISH MATERIAL, RE: FINISH SCHEDULE RT24
