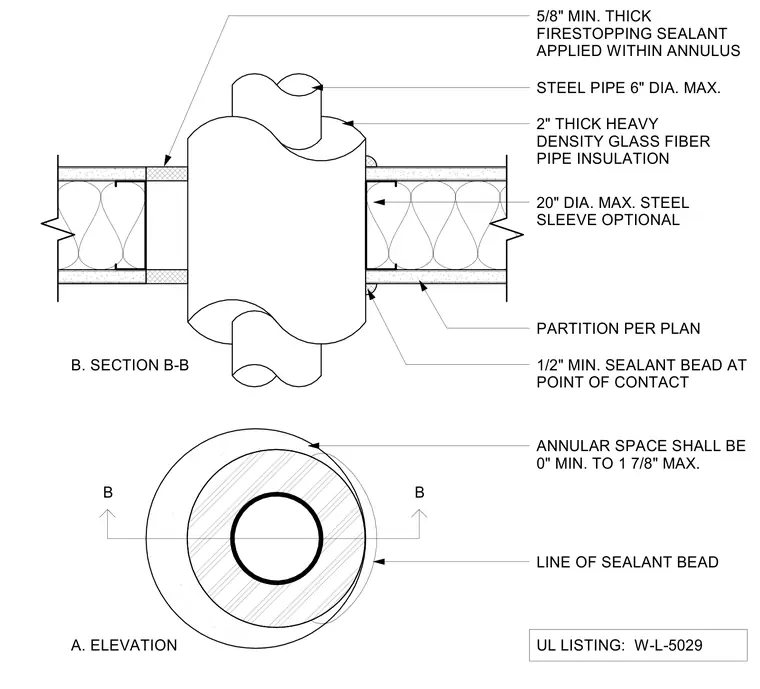

An insulated steel pipe up to six inches in diameter passes through a partition per plan with an annular space ranging from zero to one and seven-eighths inches. A five-eighths-inch minimum thick firestopping sealant fills the annulus, complemented by a one-half-inch minimum sealant bead at the point of contact. An optional steel sleeve up to twenty inches in diameter accommodates the penetration. Two inches of thick heavy-density glass fiber pipe insulation wraps the pipe, adhering to UL listing W-L-5029.
2" THICK HEAVY DENSITY GLASS FIBER PIPE INSULATION 1/2" MIN. SEALANT BEAD AT POINT OF CONTACT UL LISTING: W-L-5029 B B ANNULAR SPACE SHALL BE 0" MIN. TO 1 7/8" MAX. LINE OF SEALANT BEAD A. ELEVATION STEEL PIPE 6" DIA. MAX. 5/8" MIN. THICK FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS 20" DIA. MAX. STEEL SLEEVE OPTIONAL PARTITION PER PLAN B. SECTION B-B
