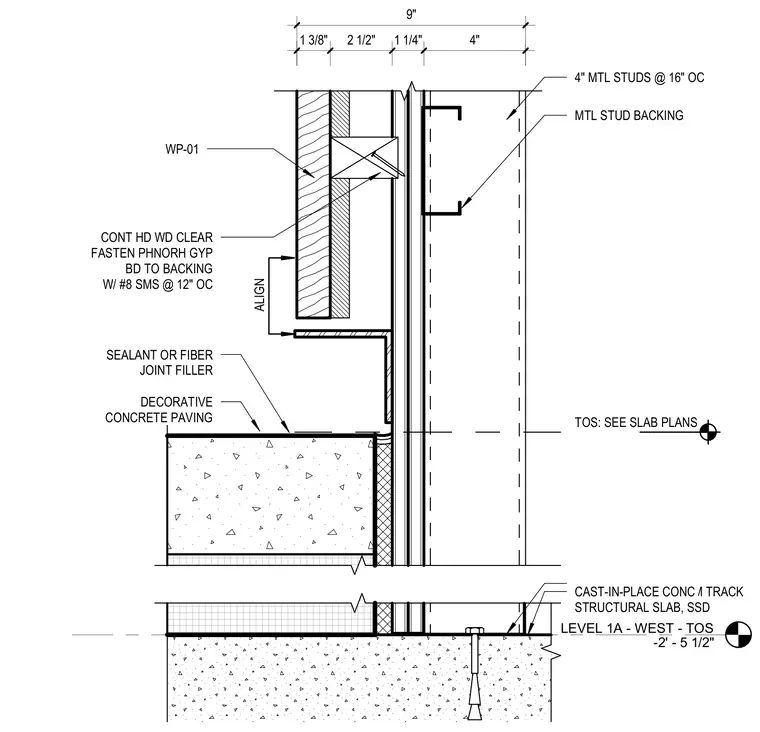

This wall base assembly features four-inch metal studs spaced at sixteen inches on center with metal stud backing, supporting a gypsum board substrate fastened with number eight sheet metal screws at twelve inches on center. Continuous hardwood clear panels are mounted over the substrate as wall finish WP-01. The base terminates above a decorative concrete paving slab, separated by sealant or a fiber joint filler. The assembly rests above a cast-in-place concrete structural slab.
LEVEL 1A - WEST - TOS -2' - 5 1/2" 1 3/8" 2 1/2" 1 1/4" 4" 9" TOS: SEE SLAB PLANS 4" MTL STUDS @ 16" OC MTL STUD BACKING MTL FRAMING BOTTOM TRACK WP-01 CONT HD WD CLEAR FASTEN PHNORH GYP BD TO BACKING W/ #8 SMS @ 12" OC CAST-IN-PLACE CONC STRUCTURAL SLAB, SSD DECORATIVE CONCRETE PAVING SEALANT OR FIBER JOINT FILLER ALIGN
