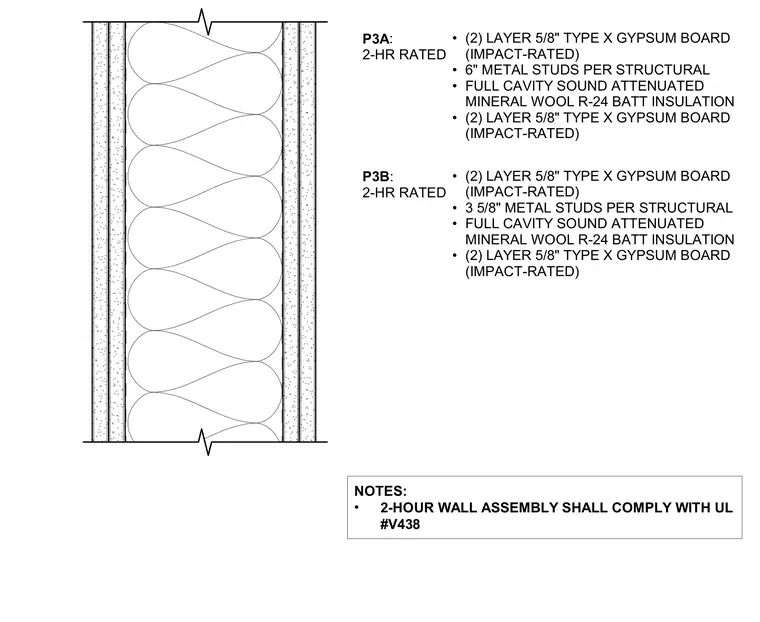

This assembly comprises cold-formed metal studs faced on both sides with two layers of 5/8-inch Type X impact-rated gypsum board. The internal wall cavity is fully filled with sound-attenuated mineral wool batt insulation rated at R-24. The partition complies with UL design number V438 and accommodates both 6-inch and 3-5/8-inch framing depths per structural requirements.
• (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) • 6" METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-24 BATT INSULATION • (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) NOTES: • 2-HOUR WALL ASSEMBLY SHALL COMPLY WITH UL #V438 P3A : 2-HR RATED • (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) • 3 5/8" METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-24 BATT INSULATION • (2) LAYER 5/8" TYPE X GYPSUM BOARD (IMPACT-RATED) P3B : 2-HR RATED
