This hollow metal relite frame mullion is specifically held back to allow horizontal blinds to pass continuously by the assembly. Glazing is integrated into the frame as indicated in the relite types schedule. Dimensions of one-and-fifteen-sixteenths inches govern the spacing from the edge of the hollow metal frame beyond. The profile accommodates interior shading devices adjacent to interior glazed partitions.

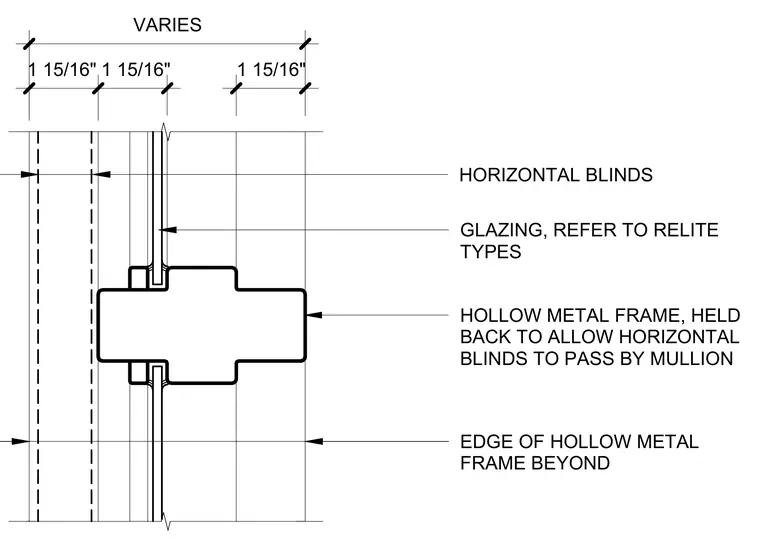

EDGE OF HOLLOW METAL FRAME BEYOND GLAZING, REFER TO RELITE TYPES HORIZONTAL BLINDS HOLLOW METAL FRAME, HELD BACK TO ALLOW HORIZONTAL BLINDS TO PASS BY MULLION 1 15/16" 1 15/16" 1 15/16" VARIES
