A 1 1/4" x 1 1/4" x 1/8" stainless steel angle is bolted every 24 inches on center with typical expansion anchors to a concrete slab per structural requirements. Required grout depth is verified in field, and seams are caulked as needed. A continuous sheet metal angle supports the finished floor per the finish schedule. Tread wires and grille support rods bear within a stainless steel pit liner.

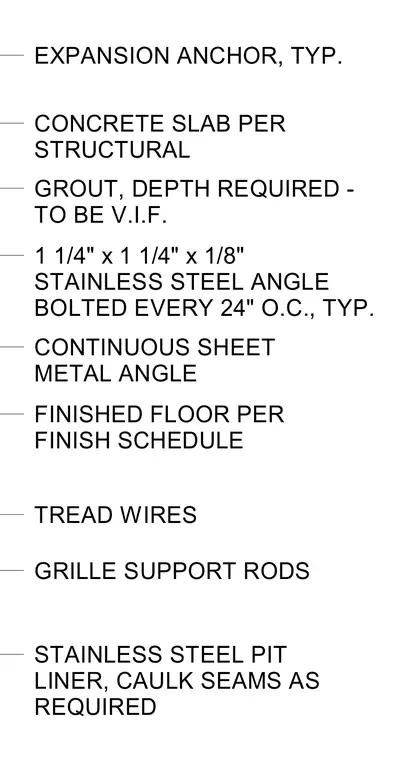

EXPANSION ANCHOR, TYP. GROUT, DEPTH REQUIRED - TO BE V.I.F. 1 1/4" x 1 1/4" x 1/8" STAINLESS STEEL ANGLE BOLTED EVERY 24" O.C., TYP. CONCRETE SLAB PER STRUCTURAL CONTINUOUS SHEET METAL ANGLE FINISHED FLOOR PER FINISH SCHEDULE TREAD WIRES GRILLE SUPPORT RODS STAINLESS STEEL PIT LINER, CAULK SEAMS AS REQUIRED
