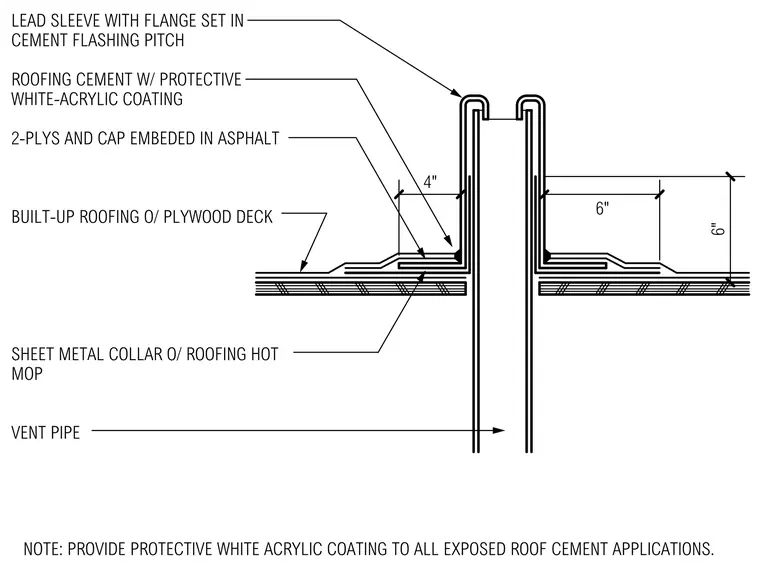

A four-inch vent pipe penetrates through a plywood roof deck finished with a built-up roofing assembly consisting of two plies and a cap embedded in asphalt. A lead sleeve with a flange is set in cement flashing pitch around the pipe, complemented by a sheet metal collar over a roofing hot mop. The entire flashing assembly is sealed with roofing cement and finished with a protective white-acrylic coating, extending four inches horizontally and six inches vertically per the specified dimensions.
LEAD SLEEVE WITH FLANGE SET IN CEMENT FLASHING PITCH ROOFING CEMENT W/ PROTECTIVE WHITE-ACRYLIC COATING 2-PLYS AND CAP EMBEDED IN ASPHALT BUILT-UP ROOFING O/ PLYWOOD DECK SHEET METAL COLLAR O/ ROOFING HOT MOP VENT PIPE 4" 6" 6" NOTE: PROVIDE PROTECTIVE WHITE ACRYLIC COATING TO ALL EXPOSED ROOF CEMENT APPLICATIONS.
