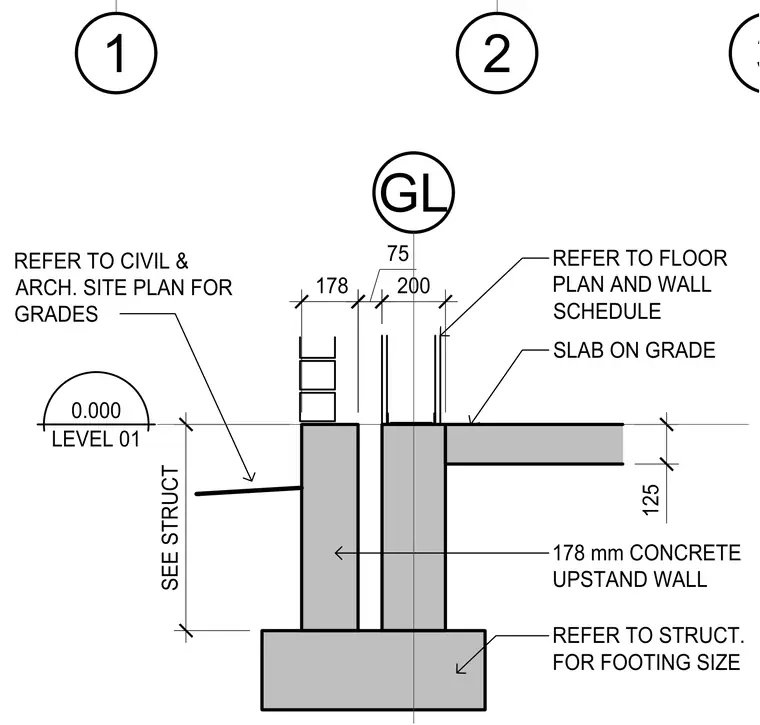

A 125 mm thick concrete slab-on-grade bears adjacent to a 178 mm concrete upstand wall supported by a foundation footing sized per structural drawings. The slab interfaces with the upstand wall assembly. Exterior grades and footing dimensions reference the structural, civil, and architectural site plans.
1 2 3 200 0.000 LEVEL 01 GL 75 178 REFER TO STRUCT. FOR FOOTING SIZE SLAB ON GRADE 125 SEE STRUCT REFER TO CIVIL & ARCH. SITE PLAN FOR GRADES 178 mm CONCRETE UPSTAND WALL REFER TO FLOOR PLAN AND WALL SCHEDULE
