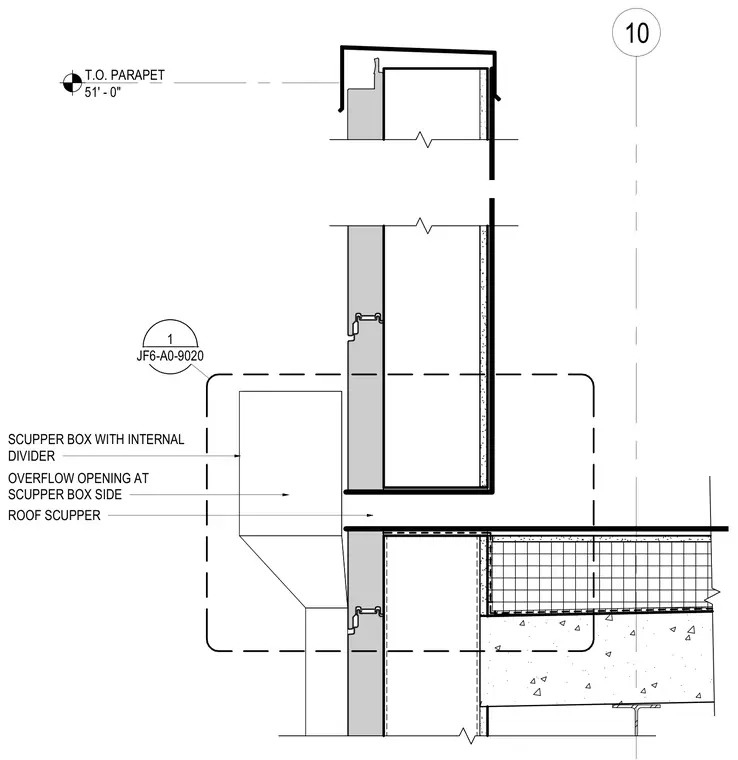

A roof scupper with an internal divider and side overflow opening penetrates the parapet wall above the roof assembly. The top of the parapet sits at elevation 51'-0". A scupper box captures and directs drainage through the wall assembly adjacent to the roof deck.
T.O. PARAPET 51' - 0" 10 ________ ________ 1 JF6-A0-9020 SCUPPER BOX WITH INTERNAL DIVIDER ROOF SCUPPER OVERFLOW OPENING AT SCUPPER BOX SIDE
