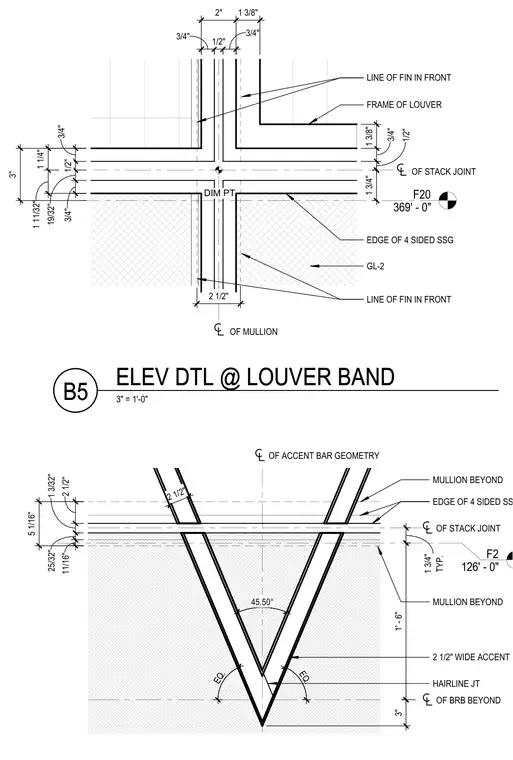

Alignment of a louver frame, four-sided structural silicone glazed glass, and front fins around a stack joint with precise dimensional callouts. The lower portion features an angled two-and-a-half-inch wide accent bar geometry intersecting a stack joint at forty-five point five degrees with mullion alignments beyond. Dimension points establish centerline offsets for mullions, stack joints, and accent bar geometries across the glazed assembly. All components are detailed with exact fractional inch tolerances to coordinate the louver band and accent bar intersections.
F20 369' - 0" OF MULLION OF STACK JOINT LINE OF FIN IN FRONT LINE OF FIN IN FRONT FRAME OF LOUVER 3 / 4 " 1 9 / 3 2 " 1 / 2 " 3 / 4 " 1 1 1 / 3 2 " 1 1 / 4 " 3 " 1 3 / 4 " 1 3 / 8 " 2 " 3 / 4 " 1 / 2 " 3 / 4 " 2 1 / 2 " 1 / 2 " 3 / 4 " 1 3 / 8 " EDGE OF 4 SIDED SSG GL-2 DIM PT F2 126' - 0" OF STACK JOINT 1 ' - 6 " T Y P . 1 3 / 4 " 1 1 / 1 6 " 2 5 / 3 2 " 1 3 / 3 2 " 2 1 / 2 " 5 1 / 1 6 " 2 1/2" WIDE ACCENT BAR MULLION BEYOND MULLION BEYOND EDGE OF 4 SIDED SSG JT OF BRB BEYOND OF ACCENT BAR GEOMETRY E Q . E Q . 3 " 4 5 . 5 0 ° HAIRLINE JT 2 1 / 2 " 3" = 1'-0" B5 ELEV DTL @ LOUVER BAND
