Structural · A-AJ9QK

Grounded Anchors Embed Schedule In Concrete

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Anchors / Embeds Reinforcing

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

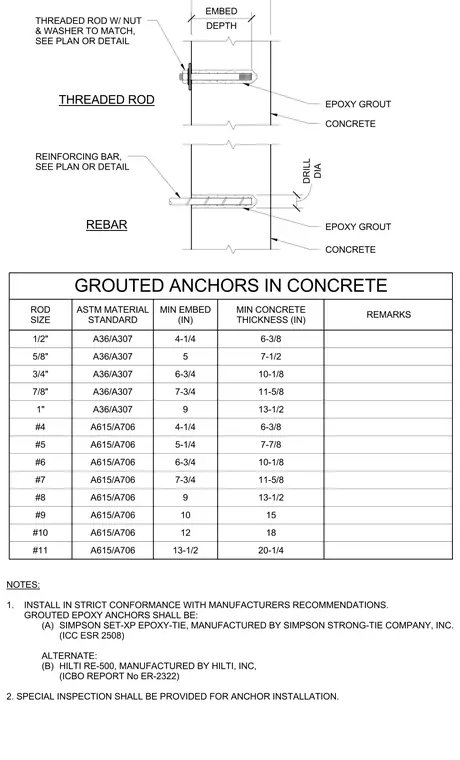

Grouted anchors are embedded in concrete, including threaded rods with matching nuts and washers as well as reinforcing bar installations. The threaded rod assembly uses ASTM A36 or A307 material standards with rod sizes ranging from one-half inch to one inch, requiring specific minimum embedment depths from four and one-quarter inches to nine inches and corresponding minimum concrete thicknesses from six and three-eighths inches to thirteen and one-half inches. The reinforcing bar schedule covers sizes number four through number eleven using ASTM A615 or A706 material standards, with embedment depths ranging from four and one-quarter inches to thirteen and one-half inches and minimum concrete thicknesses from six and three-eighths inches to twenty and one-quarter inches. All epoxy grout installations must comply with manufacturer recommendations, specifying Simpson Set-XP Epoxy-Tie or Hilti RE-500. Special inspection is required for all anchor installations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
