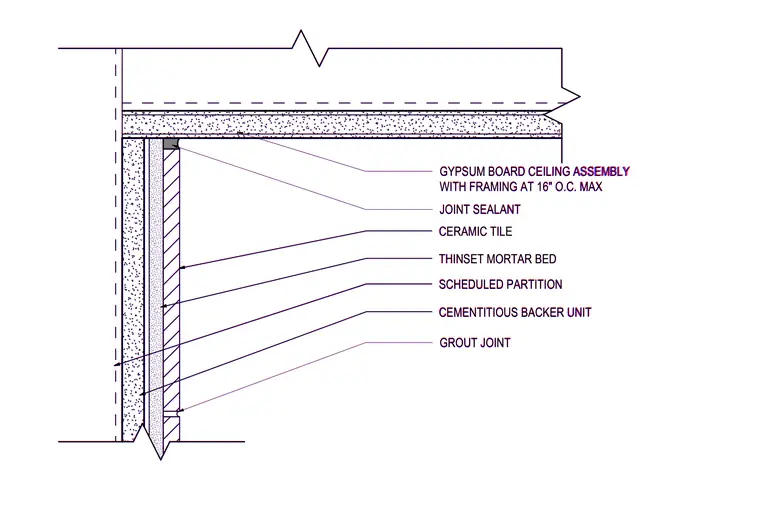

The scheduled partition consists of a cementitious backer unit finished with ceramic tile set in a thinset mortar bed with grout joints. Joint sealant is applied at the intersection between the tile finish and the gypsum board ceiling assembly, which features framing spaced at sixteen inches on center maximum.
GYPSUM BOARD CEILING ASSEMBLY WITH FRAMING AT 16" O.C. MAX JOINT SEALANT CERAMIC TILE THINSET MORTAR BED SCHEDULED PARTITION CEMENTITIOUS BACKER UNIT GROUT JOINT GYPSUM BOARD CEILING ASSEMBLY WITH FRAMING AT 16" O.C. MAX JOINT SEALANT CERAMIC TILE THINSET MORTAR BED SCHEDULED PARTITION CEMENTITIOUS BACKER UNIT GROUT JOINT
