A-AJ4GM — Curtain Rod Termination

Architectural · A-AJ4GM

Curtain Rod Termination

Scale: SCALE: 6" = 1'-0"
Units: imperial
Sheet: A-586
Discipline: Architectural

Materials

Gypsum / Drywall Metal (misc.)Timber / Wood

Elements

Millwork / Casework Windows

Text on the drawing

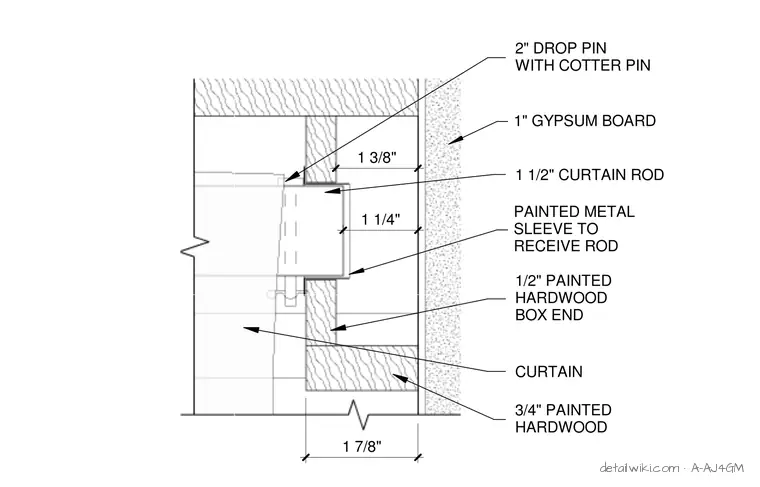

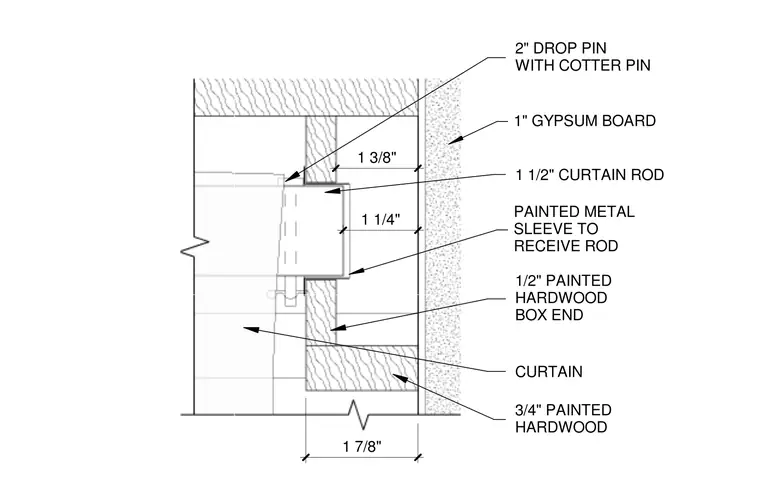

1 1/4" 1 7/8" 1" GYPSUM BOARD 1/2" PAINTED HARDWOOD BOX END 1 3/8" 1 1/2" CURTAIN ROD CURTAIN 2" DROP PIN WITH COTTER PIN 3/4" PAINTED HARDWOOD PAINTED METAL SLEEVE TO RECEIVE ROD
