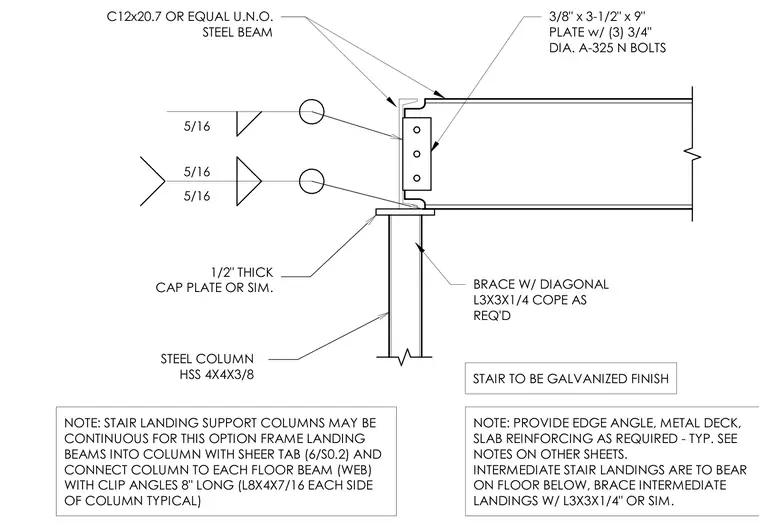

The stair landing is supported by a hollow structural section steel column measuring 4x4x3/8 with a one-half-inch thick cap plate welded with five-sixteenth-inch fillet welds. A C12x20.7 steel beam frames into the column using a three-eighths-inch by three-and-a-half-inch by nine-inch shear plate fastened with three three-quarter-inch diameter A-325 bolts. Additional support and bracing are provided by diagonal L3x3x1/4 angles coped as required, and the entire stair assembly receives a galvanized finish.
5/16 5/16 1/2" THICK CAP PLATE OR SIM. STEEL COLUMN HSS 4X4X3/8 C12x20.7 OR EQUAL U.N.O. STEEL BEAM 5/16 3/8" x 3-1/2" x 9" PLATE w/ (3) 3/4" DIA. A-325 N BOLTS NOTE: PROVIDE EDGE ANGLE, METAL DECK, SLAB REINFORCING AS REQUIRED - TYP. SEE NOTES ON OTHER SHEETS. INTERMEDIATE STAIR LANDINGS ARE TO BEAR ON FLOOR BELOW, BRACE INTERMEDIATE LANDINGS W/ L3X3X1/4" OR SIM. BRACE W/ DIAGONAL L3X3X1/4 COPE AS REQ'D NOTE: STAIR LANDING SUPPORT COLUMNS MAY BE CONTINUOUS FOR THIS OPTION FRAME LANDING BEAMS INTO COLUMN WITH SHEER TAB (6/S0.2) AND CONNECT COLUMN TO EACH FLOOR BEAM (WEB) WITH CLIP ANGLES 8" LONG (L8X4X7/16 EACH SIDE OF COLUMN TYPICAL) STAIR TO BE GALVANIZED FINISH
