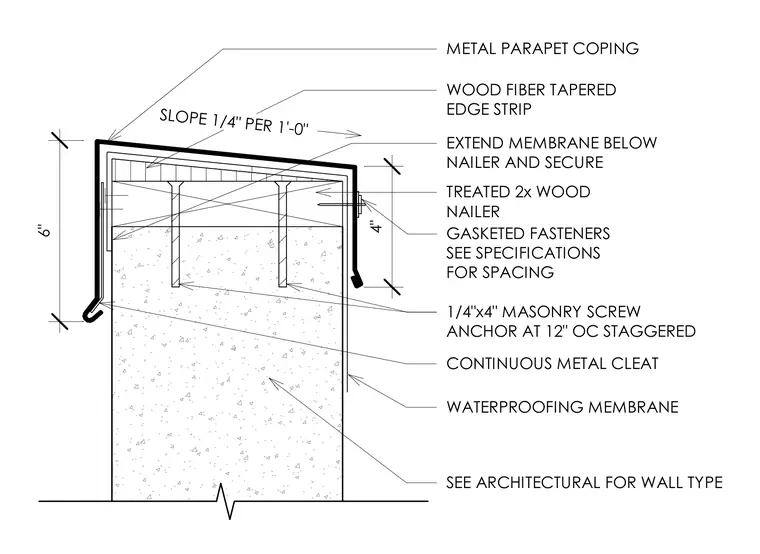

A continuous metal parapet coping is installed over a wood fiber tapered edge strip that provides a slope of one-quarter inch per one foot. The coping snaps onto a continuous metal cleat anchored to the exterior face. A treated two-inch wood nailer is fastened to the top of the masonry wall using one-quarter inch by four-inch masonry screw anchors spaced at twelve inches on center staggered. A waterproofing membrane extends below the nailer and is secured beneath the assembly.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
