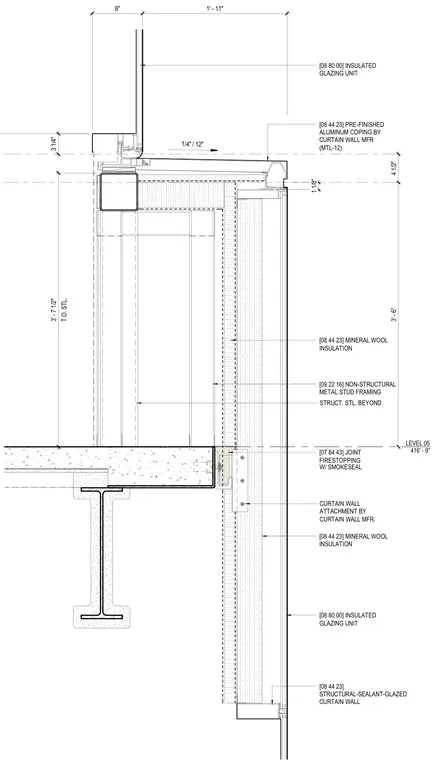

This wall section details a recessed sill condition at Level 05, integrating a structural-sealant-glazed curtain wall with the floor slab and structural steel beyond. The assembly includes an insulated glazing unit resting above a pre-finished aluminum coping, backed by non-structural metal stud framing and mineral wool insulation. Joint firestopping with smokeseal is installed at the slab edge alongside manufacturer-provided curtain wall attachments.
LEVEL 05 416' - 9" W/ SMOKESEAL CURTAIN WALL ATTACHMENT BY CURTAIN WALL MFR. 4 1/2" 3' - 6" [08 80 00] INSULATED GLAZING UNIT [08 44 23] MINERAL WOOL INSULATION [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL [07 84 43] JOINT FIRESTOPPING [08 44 23] MINERAL WOOL INSULATION [08 80 00] INSULATED GLAZING UNIT 1/4" / 12" 8" 1' - 11" STRUCT. STL. BEYOND [09 22 16] NON-STRUCTURAL METAL STUD FRAMING [08 44 23] PRE-FINISHED ALUMINUM COPING BY CURTAIN WALL MFR (MTL-12) 1 1/8" 3 1/4" T.O. STL. 3' - 7 1/2"
