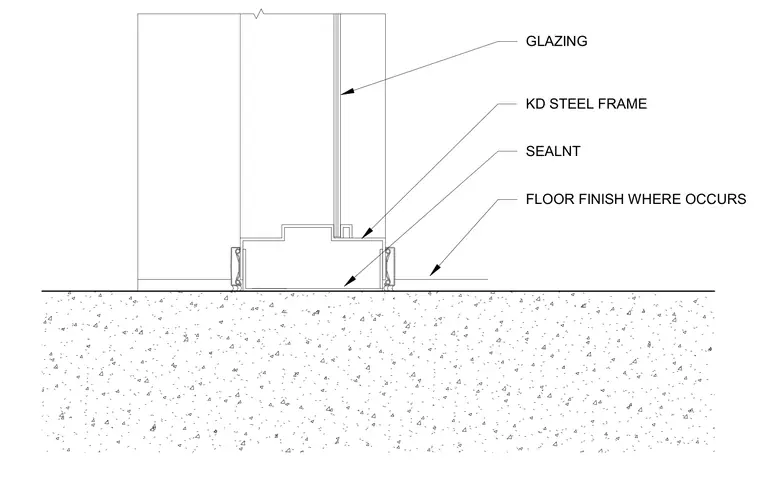

An interior knockdown steel frame sill supports glass glazing with a perimeter sealant joint. The frame sits directly on the floor slab, accommodating a floor finish where it occurs.
